55″ LED Lighted S-Shape Touch Display – 1

Product Positioning

This 55-inch 4K S-Shaped Capacitive Touch LED Display integrates 4K high-definition display, 10-point capacitive touch, RGB LED frame lighting, and an industrial-grade metal housing. It is designed for high-end commercial interactive equipment, customized cabinets, smart display terminals, entertainment systems, and special-shaped display applications. Compared with standard flat displays, this product provides stronger visual impact, a more distinctive appearance, and an enhanced interactive user experience.

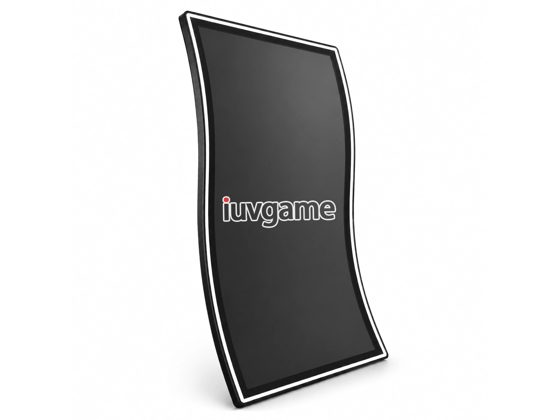

S-Shaped Design

The display features a unique J-shaped curved structure, delivering a modern and high-tech appearance. The special curved body creates strong product recognition and makes it suitable for customized projects and high-end equipment integration. The J-shaped design not only improves the product appearance but also enhances the overall visual presentation of the final equipment.

10-Point Capacitive Touch

Equipped with high-sensitivity capacitive touch technology, the display supports 10-point touch control with fast response, accurate positioning, and smooth operation.

It supports tap, swipe, zoom, and other multi-touch gestures, making it suitable for high-frequency commercial interaction and long-term operation.

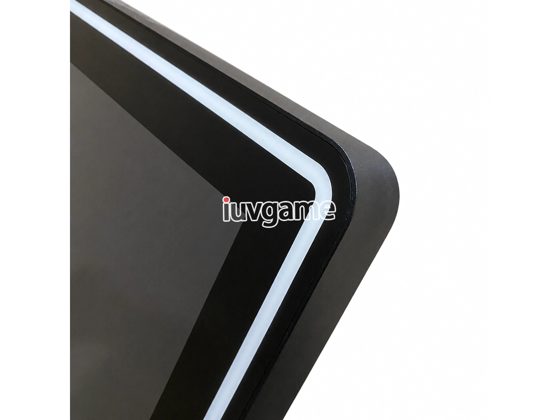

RGB Colorful Running Light Effect

The display frame is integrated with RGB LED lighting effects, creating colorful illumination and enhancing the product’s visual appeal.

The RGB lighting can be customized according to the customer’s equipment design, helping the final product stand out in different commercial environments.

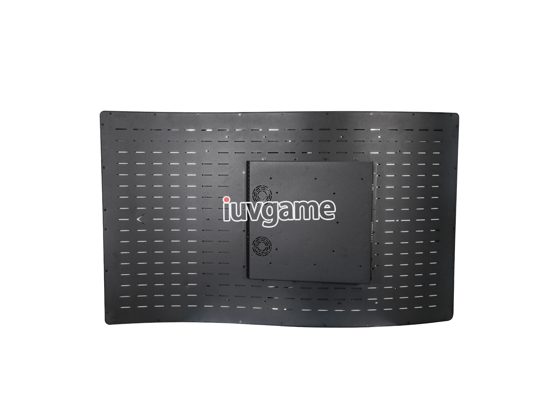

Industrial-Grade Aluminum Frame

The display is built with an industrial-grade metal housing, providing high strength, stable structure, excellent heat dissipation, and long-term durability.

The solid rear structure supports embedded installation, equipment integration, and continuous commercial operation. The metal housing improves deformation resistance and overall structural reliability.

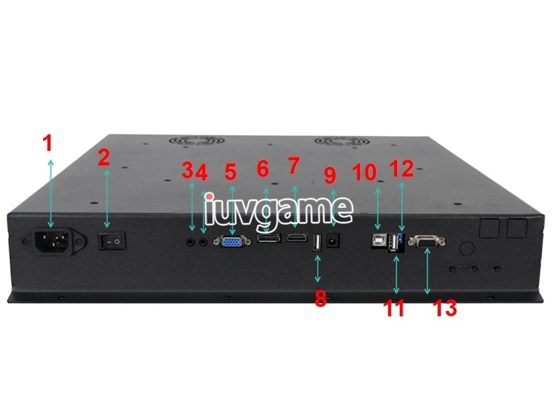

Interface Introduction

1. 110/220V Power Input
2. Power Switch
3. Audio Output
4. Audio Input
5. VGA Signal
6. DP Signal
7. HDMI Signal
8. USB Touch Port 1
9. Power Input
10. USB Touch Port 2
11. USB Touch Port 3
12. Toggle switch
13. RS232 Touch Port

Product Safety Instructions

Handling Warning: The LCD panel is made of glass and is fragile. Do not apply excessive pressure to the display area, drop it, or subject it to strong impact. Otherwise, the glass may crack or break, or the internal circuit may be permanently damaged.

Electrical Safety: Before powering on, confirm that the input voltage matches the rated specifications of the driver board. Do not use damaged power cables or interfaces to avoid electric shock, short circuit, or fire hazards.

Environmental Requirements: Keep the product away from direct sunlight, high temperature, high humidity, and dusty environments. Operating temperature: 0°C to 50°C. Storage temperature: -20°C to 60°C to prevent component aging and screen damage.

Waterproof & Dustproof: The bare panel is not waterproof. Do not expose it to liquids or corrosive gases. Proper sealing protection should be applied according to the housing design during assembly.

Do not disassemble or modify the panel without professional guidance. Otherwise, the warranty will be void, and irreversible damage may occur.

When cleaning the screen, use a lint-free soft cloth with neutral detergent. Do not use corrosive solvents such as alcohol or benzene to avoid damaging the anti-glare coating.
