27″ V-Shape Dual Screen Touch Display 4

Product Positioning

27-inch V-shaped dual-screen capacitive touch display designed for clear image output, reliable touch control and equipment integration. The product focuses on standard display and touch functions without decorative LED lighting, making it suitable for commercial display systems, control terminals, interactive equipment and customized embedded applications.

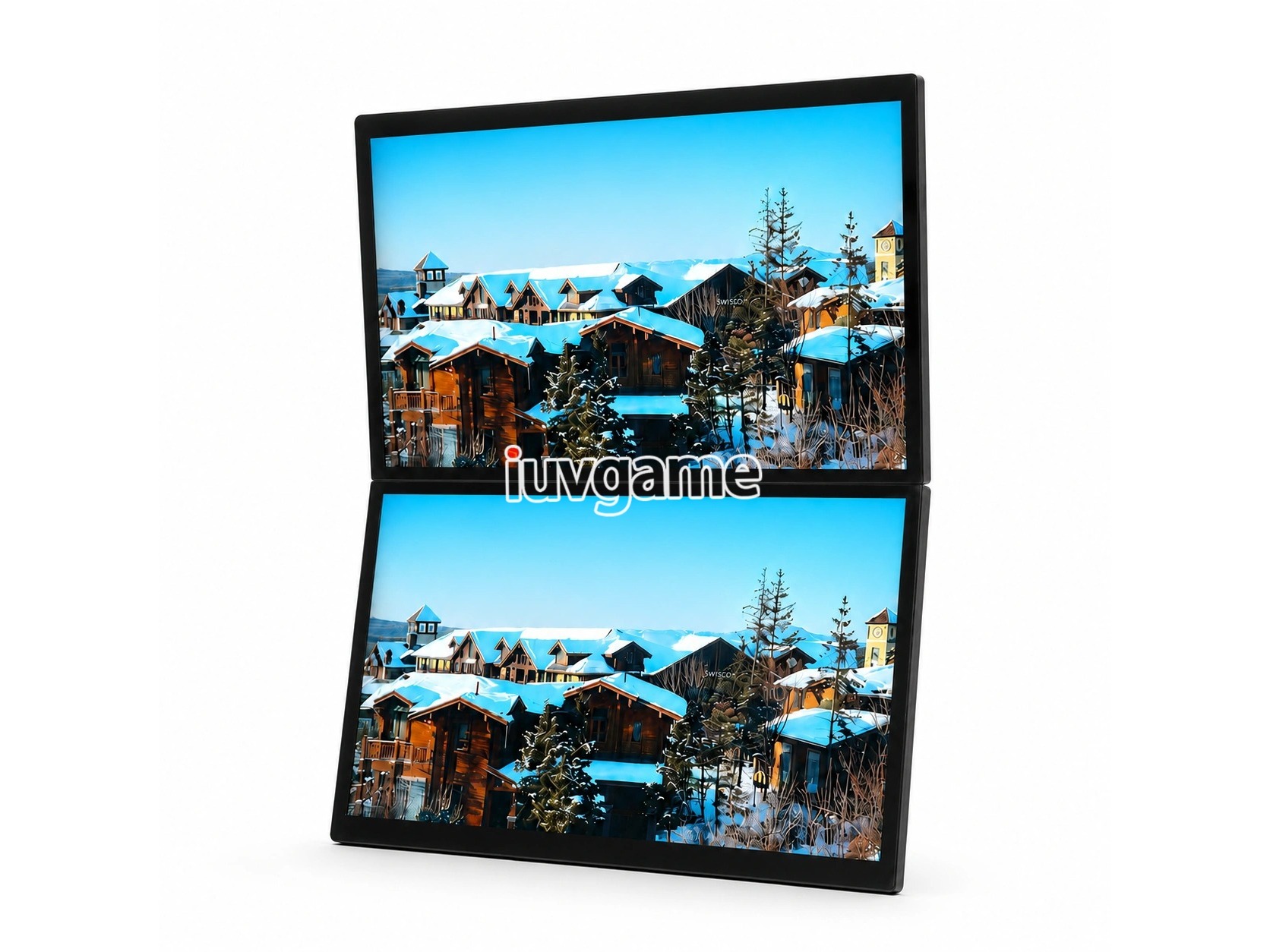

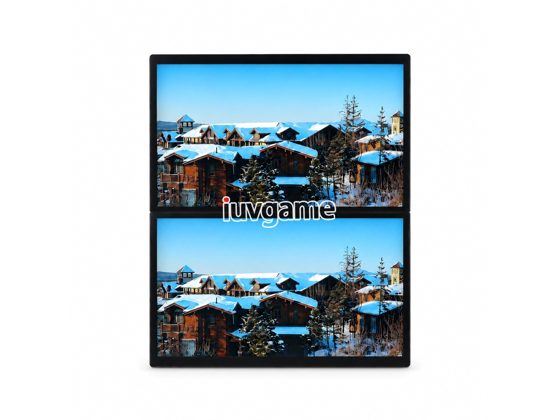

V-Shaped Dual-Screen Design

Two horizontal display panels form a 165° V-shaped viewing structure. The dual-screen layout provides a wider visual presentation, while the all-black frame keeps the appearance simple, professional and easy to integrate into different equipment designs.

10-Point Capacitive Touch

Equipped with projected capacitive touch technology, the display supports accurate 10-point touch, fast response and smooth operation. Common gestures such as tap, swipe, drag and zoom can be supported depending on the system software.

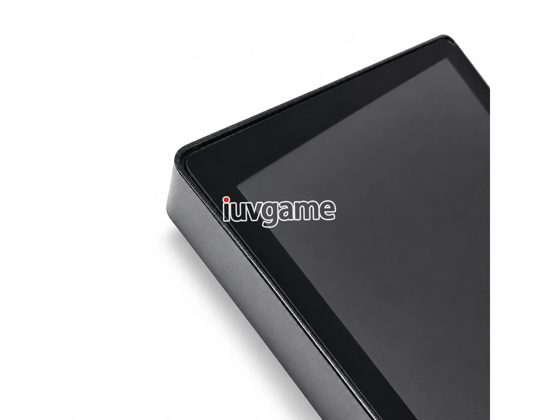

Clear Display & Non-Lighted Frame Design

This model is a standard display ，The LED-backlit LCD panels provide clear image presentation, while the clean black frame and narrow-border appearance keep the product stable, modern and easy to match with customer equipment.

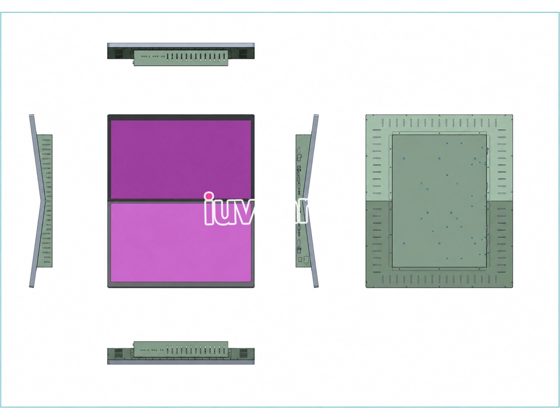

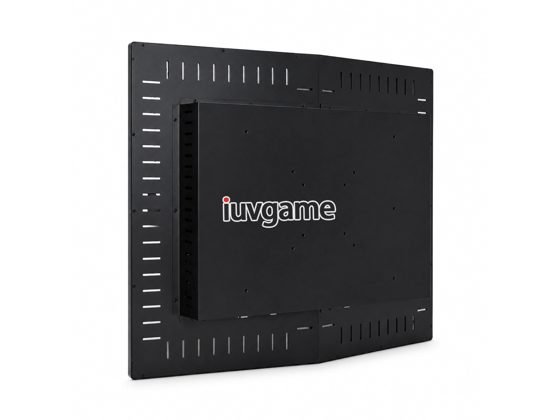

Industrial-Grade Metal Housing

The reinforced metal housing provides good structural strength, heat dissipation and installation stability. The rear box, ventilation openings and mounting-hole structure support long-term commercial operation and flexible equipment integration. Structure highlights: matte black finish / metal rear housing / ventilation slots / rear mounting support / V-shaped dual-panel form.

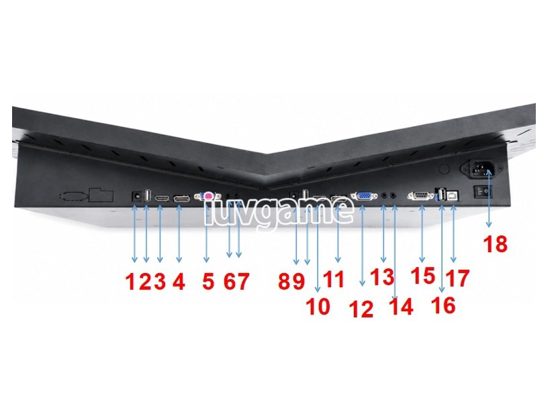

Interface Introduction

1. DC Power Input
2. USB 1
3. HDMI Signal Input
4. DP Signal Input
5. VGA Signal Input 6，Audio Output 7，Audio Input
6. DC Power Input
7. USB 2
8. HDMI Signal Input
9. DP Signal Input
10. VGA Signal Input 13，Audio Input 14，Audio Output 15，RS232 Touch Port 16， USB 3 17， USB 4 18，110/220V Power Input

Product Safety Instructions

Handling Warning: The LCD panel is made of glass and is fragile. Do not apply excessive pressure to the display area, drop it, or subject it to strong impact. Otherwise, the glass may crack or break, or the internal circuit may be permanently damaged.

Electrical Safety: Before powering on, confirm that the input voltage matches the rated specifications of the driver board. Do not use damaged power cables or interfaces to avoid electric shock, short circuit, or fire hazards.

Environmental Requirements: Keep the product away from direct sunlight, high temperature, high humidity, and dusty environments. Operating temperature: 0°C to 50°C. Storage temperature: -20°C to 60°C to prevent component aging and screen damage.

Waterproof & Dustproof: The bare panel is not waterproof. Do not expose it to liquids or corrosive gases. Proper sealing protection should be applied according to the housing design during assembly.

Do not disassemble or modify the panel without professional guidance. Otherwise, the warranty will be void, and irreversible damage may occur.

When cleaning the screen, use a lint-free soft cloth with neutral detergent. Do not use corrosive solvents such as alcohol or benzene to avoid damaging the anti-glare coating.
