43″ LED Lighted Curved Touch Display (4K) 1

Product Positioning

43-inch C-curved capacitive touch all-in-one display designed for commercial interactive applications. It combines 4K display, immersive curved viewing, capacitive touch control, and RGB running light effects, making it ideal for self-service kiosks, gaming equipment, and interactive advertising displays.

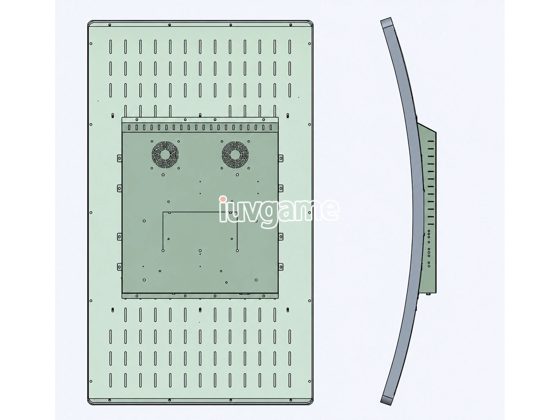

C-Curved Design

The customized concave curved screen delivers stronger visual wraparound and immersion than a flat display, creating greater visual impact for gaming and interactive display scenarios.

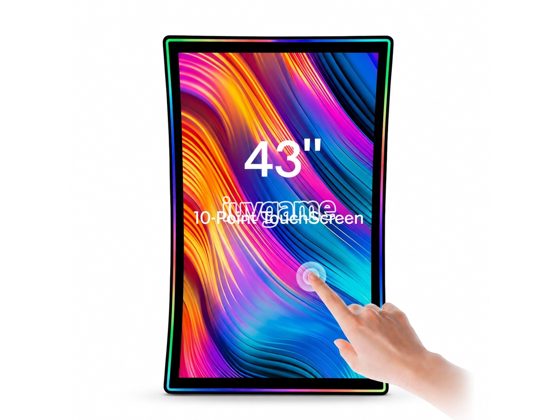

10-Point Capacitive Touch

Equipped with capacitive touch technology, it supports accurate multi-point touch, fast response, strong anti-interference performance,

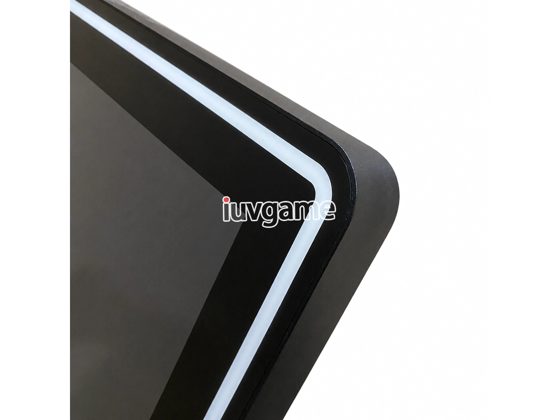

RGB Colorful Running Light Effect

Dynamic RGB ambient lights around the screen support customizable colors, modes, and rhythm, creating a strong technology-style visual effect and improving product recognition.

Industrial-Grade Aluminum Frame

The high-strength aluminum alloy frame is durable and provides excellent heat dissipation, suitable for long-term commercial operation. The housing supports customized painting and silk-screen printing.

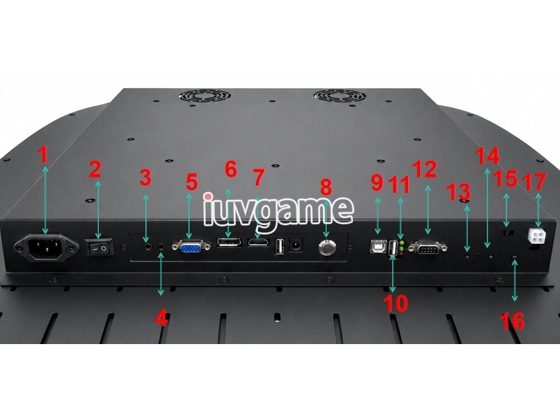

Interface Introduction

1. 110/220V Power Input
2. Power Switch
3. Audio Output
4. Audio Input
5. VGA Signal
6. DP Signal
7. HDMI Signal
8. Touch Direction Switch
9. USB Touch Port 1
10. USB Touch Port 2
11. Touch Direction Indicator
12. RS232 Touch Port
13. LED Mode +
14. LED Speed
15. LED Light Switch: Cabinet / Single Screen
16. LED Mode –
17. LED Signal Port for Cabinet Light Card

Product Safety Instructions

Handling Warning: The LCD panel is made of glass and is fragile. Do not apply excessive pressure to the display area, drop it, or subject it to strong impact. Otherwise, the glass may crack or break, or the internal circuit may be permanently damaged.

Electrical Safety: Before powering on, confirm that the input voltage matches the rated specifications of the driver board. Do not use damaged power cables or interfaces to avoid electric shock, short circuit, or fire hazards.

Environmental Requirements: Keep the product away from direct sunlight, high temperature, high humidity, and dusty environments. Operating temperature: 0°C to 50°C. Storage temperature: -20°C to 60°C to prevent component aging and screen damage.

Waterproof & Dustproof: The bare panel is not waterproof. Do not expose it to liquids or corrosive gases. Proper sealing protection should be applied according to the housing design during assembly.

Do not disassemble or modify the panel without professional guidance. Otherwise, the warranty will be void, and irreversible damage may occur.

When cleaning the screen, use a lint-free soft cloth with neutral detergent. Do not use corrosive solvents such as alcohol or benzene to avoid damaging the anti-glare coating. Product code: CTD-43.
