27″ LED Lighted U-Shaped Touch Display – 3

Product Positioning

This U-Shaped Capacitive Touch LED Frame Display is designed for commercial interactive equipment. It integrates high-definition display performance, 10-point capacitive touch, RGB lighting effects, and a durable metal housing. It is suitable for interactive entertainment equipment, commercial terminals, display systems, customized cabinets, and smart interactive devices.

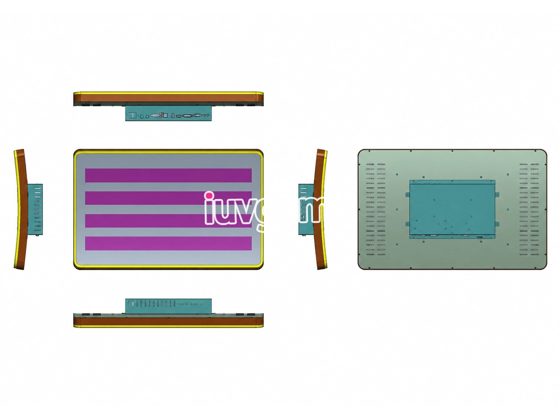

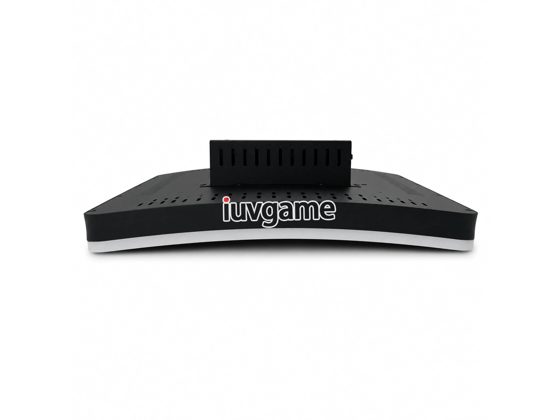

U-Curved Design

The display adopts a unique U-shaped structural design, offering stronger visual recognition and product differentiation compared with standard flat displays. The rounded frame with integrated LED lighting enhances the overall product appearance, making it ideal for embedded installation and customized equipment integration.

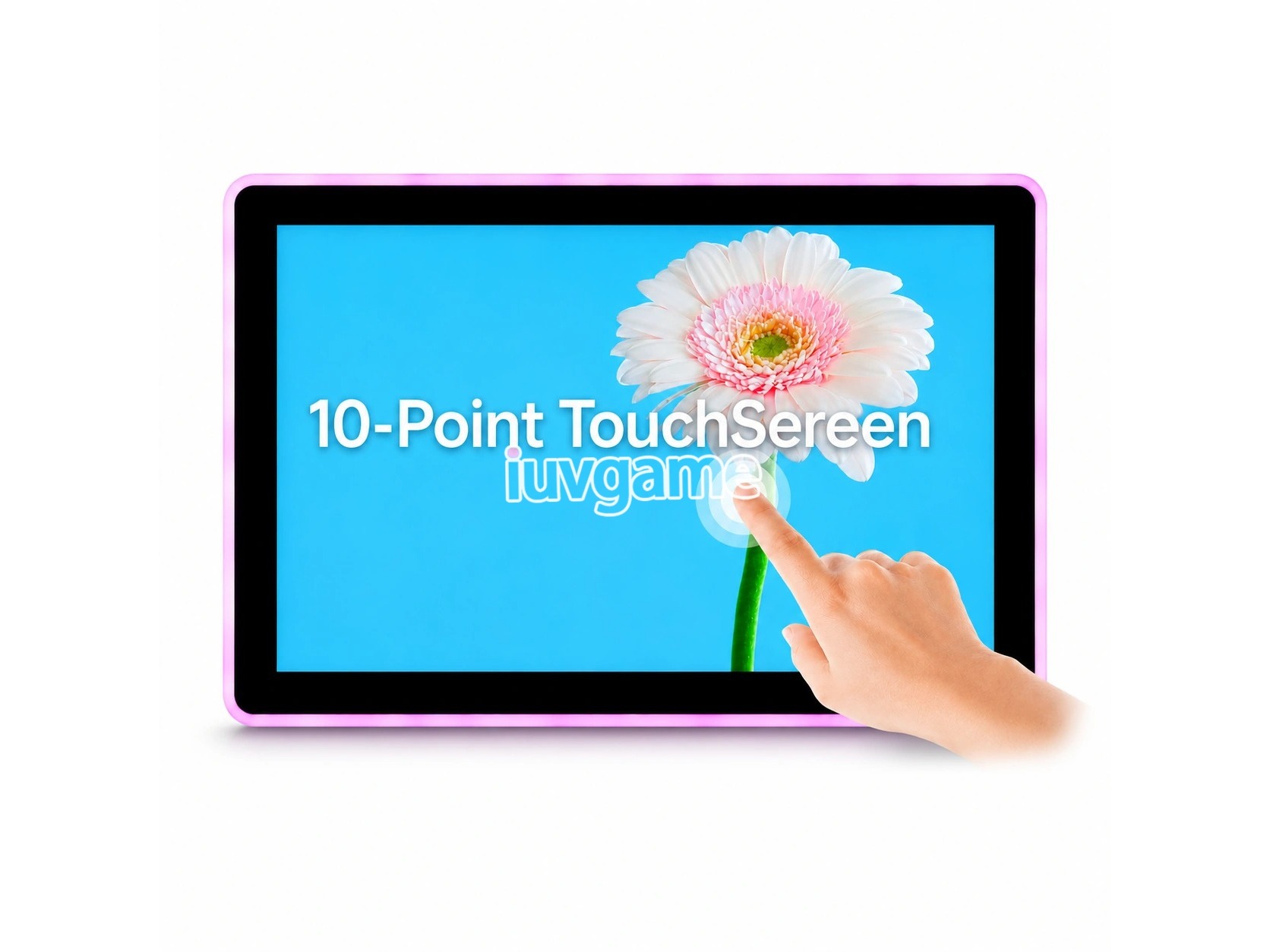

10-Point Capacitive Touch

Equipped with high-sensitivity capacitive touch technology, the display supports standard 10-point touch control with fast response, accurate positioning, and smooth operation. It supports tap, swipe, zoom, and other multi-touch gestures, making it suitable for long-term and high-frequency interactive use.

RGB Colorful Running Light Effect

The frame features built-in RGB LED lighting effects, delivering colorful and dynamic visual performance. The lighting can be customized according to the overall equipment style, enhancing the display’s technology feel and visual appeal in commercial and interactive environments.

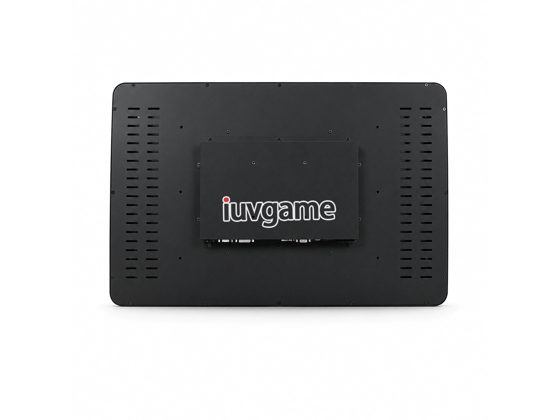

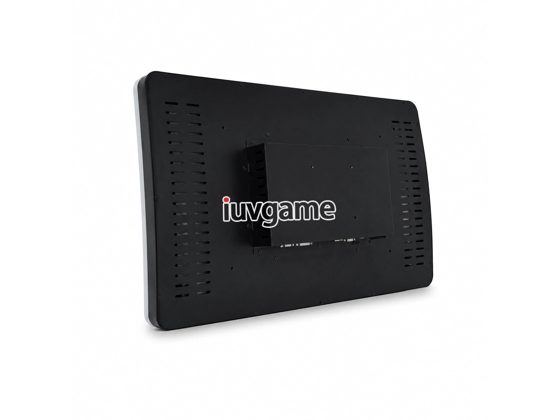

Industrial-Grade Aluminum Frame

The display is built with an industrial-grade metal housing, offering high strength, stable structure, excellent heat dissipation, and strong resistance to deformation. It is suitable for long-term commercial operation and meets the requirements of equipment integration, embedded installation, and customized projects.

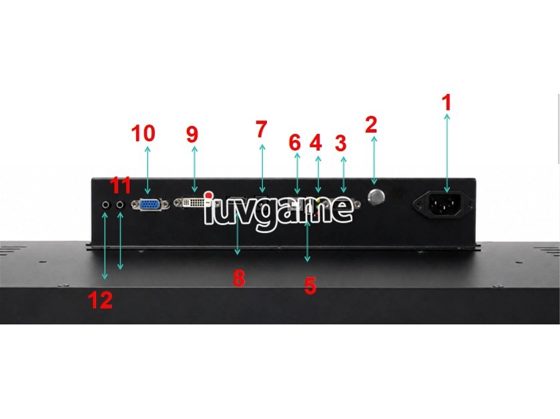

Interface Introduction

1. 110/220V Power Input
2. Touch Direction Switch
3. RS232 Touch Port
4. Touch Direction Indicator
5. USB Touch Port 1
6. USB Touch Port 2
7. DC Power Input
8. HDMI Signal
9. DVI Signal
10. VGA Signa
11. Audio Output
12. Audio Input

Product Safety Instructions

Handling Warning: The LCD panel is made of glass and is fragile. Do not apply excessive pressure to the display area, drop it, or subject it to strong impact. Otherwise, the glass may crack or break, or the internal circuit may be permanently damaged.

Electrical Safety: Before powering on, confirm that the input voltage matches the rated specifications of the driver board. Do not use damaged power cables or interfaces to avoid electric shock, short circuit, or fire hazards.

Environmental Requirements: Keep the product away from direct sunlight, high temperature, high humidity, and dusty environments. Operating temperature: 0°C to 50°C. Storage temperature: -20°C to 60°C to prevent component aging and screen damage.

Waterproof & Dustproof: The bare panel is not waterproof. Do not expose it to liquids or corrosive gases. Proper sealing protection should be applied according to the housing design during assembly.

Do not disassemble or modify the panel without professional guidance. Otherwise, the warranty will be void, and irreversible damage may occur.

When cleaning the screen, use a lint-free soft cloth with neutral detergent. Do not use corrosive solvents such as alcohol or benzene to avoid damaging the anti-glare coating. Product code: SSD-27.
