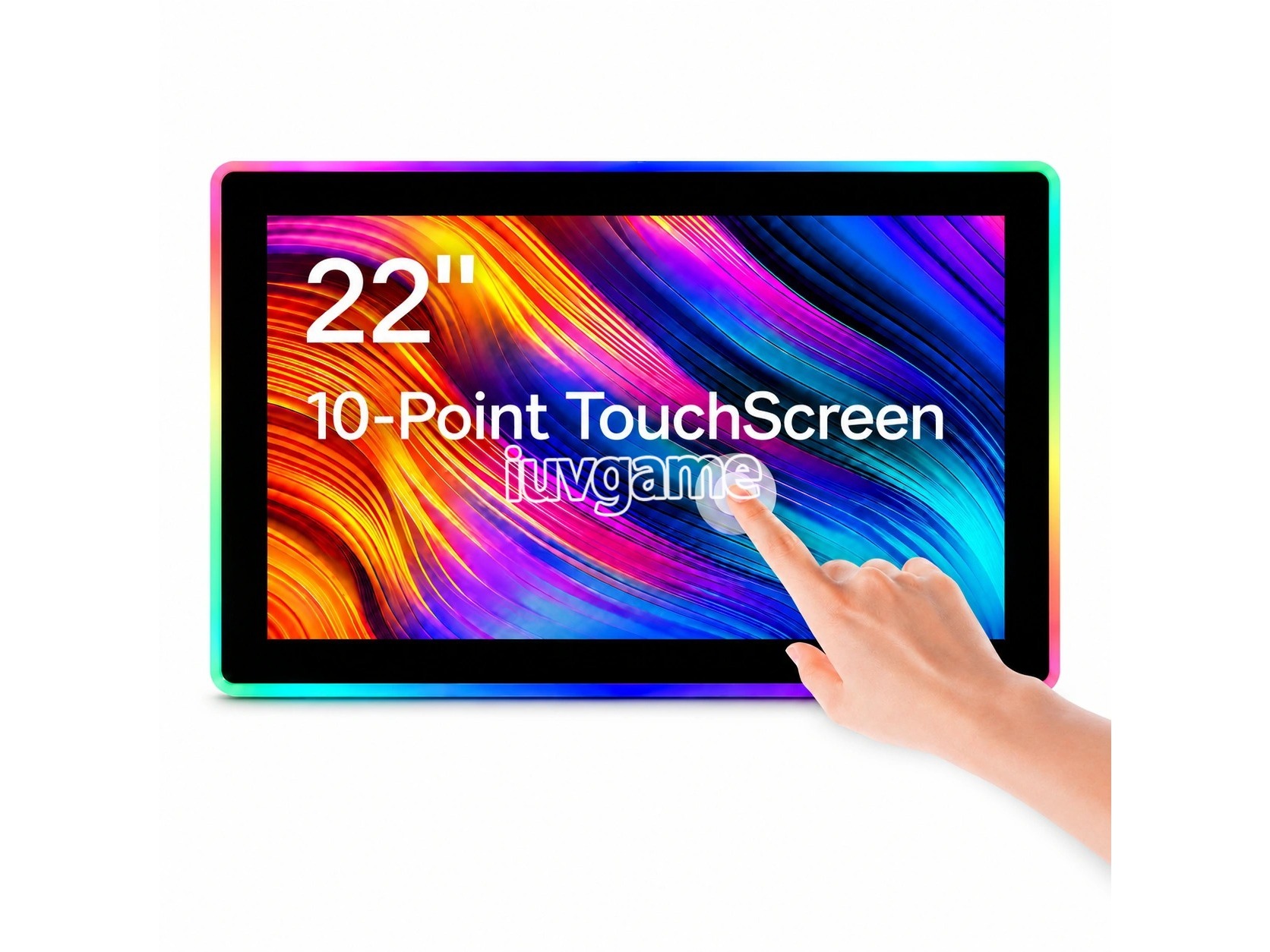

22″ LED Lighted Flat Touch Display

Product Positioning

This product is a 19-inch and 22-inch 1080*1920 （2K）touch monitor with an LED edge-lit frame. It combines display, touch control, and colorful LED lighting in one integrated design. It is suitable for gaming equipment, entertainment terminals, smart display devices, commercial terminals, and customized cabinet applications. With a stylish LED light frame and stable touch performance, the product helps improve the visual appeal and user interaction experience of the whole machine.

Product Design

The monitor adopts a flat front design with a black touch panel and an integrated LED light frame. The overall appearance is simple, modern, and technology-oriented. The slim front structure makes it suitable for embedded installation and customized equipment design. The product supports 19-inch and 22-inch size options, which can meet different customer project requirements.

10-Point Capacitive Touch

The product supports 10-point capacitive touch technology. It provides fast response, accurate positioning, and smooth touch operation. It supports common touch operations such as clicking and sliding. The touch performance is stable and suitable for frequent operation in commercial and entertainment equipment.

RGB Colorful Running Light Effect

The monitor features an RGB colorful running light effect around the frame. The dynamic LED lighting makes the product more eye-catching and enhances the visual appeal of the whole machine. It is suitable for gaming equipment, entertainment terminals, commercial display devices, and customized cabinet applications. The RGB lighting effect helps create a stronger technology and entertainment atmosphere, making the equipment more attractive in practical use.

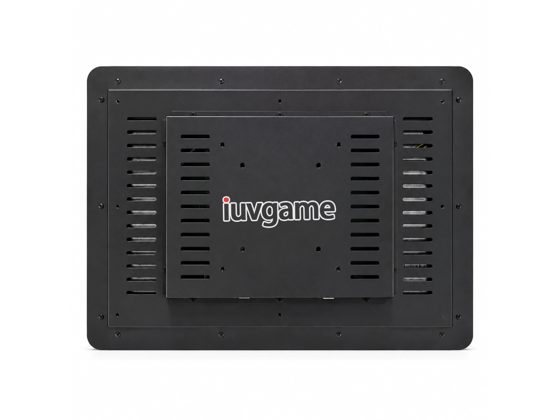

Industrial-Grade Metal Housing

The product uses an industrial-grade metal housing structure. The metal housing provides strong structural support, good durability, and stable performance for long-term use. It also helps improve heat dissipation and product protection, making the monitor suitable for commercial terminals, gaming equipment, entertainment devices, and customized cabinet applications.

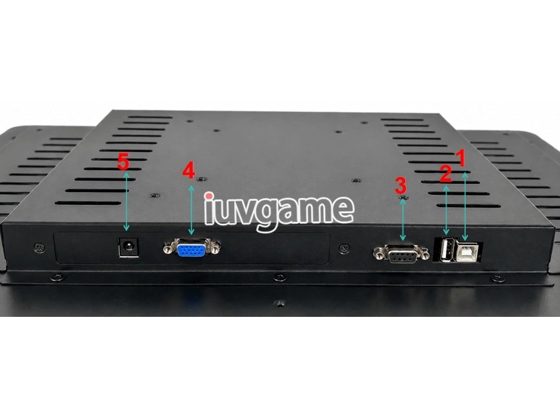

Interface Introduction

1. USB Touch Port 1
2. USB Touch Port 2
3. RS232 Touch Port
4. VGA Signal
5. DC Power Input

Product Safety Instructions

Handling Warning: The LCD panel is made of glass and is fragile. Do not apply excessive pressure to the display area, drop it, or subject it to strong impact. Otherwise, the glass may crack or break, or the internal circuit may be permanently damaged.

Electrical Safety: Before powering on, confirm that the input voltage matches the rated specifications of the driver board. Do not use damaged power cables or interfaces to avoid electric shock, short circuit, or fire hazards.

Environmental Requirements: Keep the product away from direct sunlight, high temperature, high humidity, and dusty environments. Operating temperature: 0°C to 50°C. Storage temperature: -20°C to 60°C to prevent component aging and screen damage.

Waterproof & Dustproof: The bare panel is not waterproof. Do not expose it to liquids or corrosive gases. Proper sealing protection should be applied according to the housing design during assembly.

Do not disassemble or modify the panel without professional guidance. Otherwise, the warranty will be void, and irreversible damage may occur.

When cleaning the screen, use a lint-free soft cloth with neutral detergent. Do not use corrosive solvents such as alcohol or benzene to avoid damaging the anti-glare coating. Product code: FTD-22.
